| Product name: |

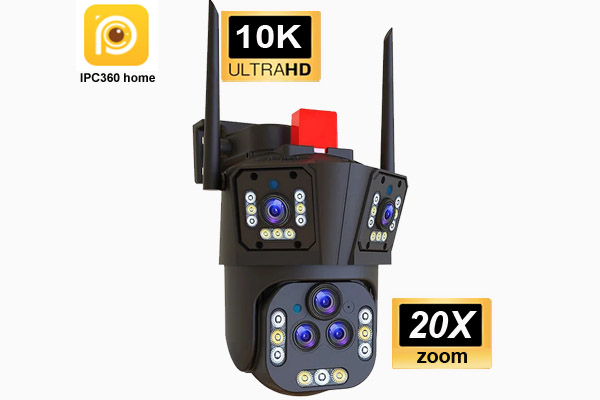

20X Zoom 5Lens with 3 screen wifi outdoor camera |
| Product model: |
P11-Q3-4M-20X |
| Technical parameter |
| Processor： |
T31LC |
| App: |
IPC360 Home |
| Lens: |
5 lens*4mp=20MP |
| Image sensor: |
1/3″ HD CMOS 2 megapixel CMOS sensor(GC2083) |
| Resolution: |
2560*1440P |
| Video compression standard： |
H.264 |
| Video frame rate: |
Max 25 frame |
| Video playback mode: |
connected mobile user |
| Audio input and output: |
Input： built in microphone; output： built-in speaker |
| Built in lens-ballhead camera： |
12mm+6.0mm +22mm lens |
| Built in lens-gun camera： |
4.0MM lens *2pcs |
| Focusing method： |
Manual |
| Infrared night vision effect: |
18pcs IR LED，night vision 30-50 meters，power consumption 3.12W；Control the ir light and IR-CUT switch through photoresistance |
| White light effect： |
20 white light LED, lighting power consumption 3.6W |
| Focusing method: |
Manual |
| Minimum illumination: |
0.1Lux/F1.2 |
| PTZ control: |
Horizontal rotation 355 degrees vertical 90 degrees |
| Local storage： |
Max Support 128GB TF card, support 24 hours of video or video alarm |
| Cloud Storage： |
Support |
| Support multiple protocols: |
HTTP,HTPPS,TCP,IPV4,UDP,ICMP,DHCP,DNS，ONVIF |
| Wifi: |
Support IEEE 802.11b/g/n |
| Motion detection: |
Support |
| Video method: |
Continuous video/Event video |
| Alarm action： |
Mobile client push screenshot |
| Firmware upgrade: |
Remote upgrade can be through the network |
| Multi-user sharing: |
Family share to 5 users |
| Supply voltage: |
12V 3A (not including) |
| Working temperature: |
-20 degrees C ~50 C |
| Working environment: |
IP66 Waterproof , can use indoor and outdoor |
