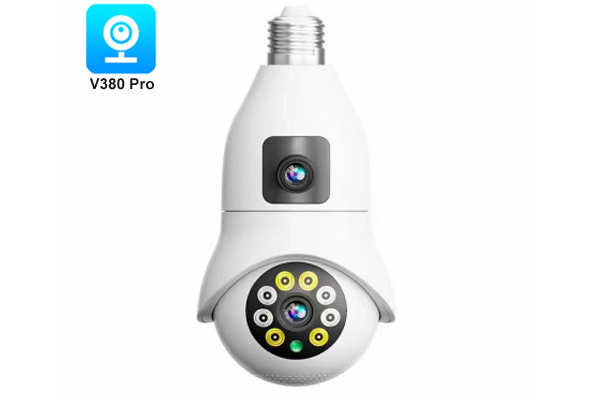

| Model: |
SQ005-W |
| APP: |
V380 Pro |
| System structure: |
Embedded Linux system, ARM chip structure |
| Chip: |
1/4" SC1346*2 |
| Resolution: |
2mp+2mp=4mp |
| Lens |
2*3.6MM |
| Pan-tilt: |
Horizontal：355° Vertical：90° |
| Preset point quantity: |
6pcs |
| Video compression standard: |
H.264/15FPS |
| Video format: |
PAL |
| Minimum illumination: |
0.01Lux@（F2.0，VGC ON),O.Luxwith IR |
| Electronic shutter: |
Auto |
| Backlight compensation： |
Support |
| Noise reduction: |
2D、3D |
| Infrared LED: |
PT indoor camera: 4pcs infrared LED + 4pcs White LED
Bullet camera: 4pcs infrared LED |
| Network connection: |
Support WIFI, AP hotspot (without RJ45 Network port) |
| Network: |
2.4G Wi-Fi （Support IEEE802.11b/g/ N wireless protocol） |
| Night Version: |
Dual Light switch automatic, 5-10 Meters（varies from environment） |
| Audio: |
Built-in microphone and speaker, support two-way real-time audio transmission. ADPCM audio compression standard, self-adaptive stream code |
| Network protocol: |
TCP/IP、UDP、HTTP
DDNS、DHCP、FTP、NTP |
| Alarm: |
①Motion detection, picture push ②Human intrusion Detection (optional) |
| Storage: |
TF Card（Max 128G）；Cloud storage (optional) |
| Power input: |
110-240V AC power |
| Work environment: |
Working temperature:-10℃ ~ + 50℃ Working Humidity: ≤95%RH |
